PACE: Verifiable Safety and Cyber Evidence Graphs for Physical AI

Faster commissioning, controlled change and continuous assurance for robots, connected products and cross-company operations

Author

Dr. Carsten Stöcker

Affiliation

Dr. Carsten Stöcker — Spherity GmbH

Published

2026-09-09

Updated

2026-09-09

Research cut-off

2026-09-08 · Standards, regulation and implementation evidence reviewed to this date

This version

https://spherity.github.io/spherity-research/physical-ai-compliance-evidence-pace.html

Latest version

https://spherity.github.io/spherity-research/physical-ai-compliance-evidence-pace.html

Share ↗

Browse this paper

Why PACE matters for Physical AI

Physical AI moves AI from recommendations into machines that change the physical world. A modular robot arm can combine components, safety functions, software, AI models, tooling, parameters and operating constraints from multiple organizations. Every material change can alter the evidence needed to justify commissioning or return to service.

Spherity proposes Physical AI Compliance Evidence (PACE) as an industry-leadership research initiative and vendor-neutral best-practice concept. Its core mechanism is a Verifiable Safety Assurance Evidence Graph (VSAEG): a machine-readable, cryptographically verifiable map from a specific product configuration and use case to the claims, tests, provenance, dependencies, status and authority needed for a decision.

PACE turns scattered documents into configuration-bound evidence paths so qualified parties can find, verify and reuse the right evidence faster—without moving deterministic safety functions into the graph or treating a credential as a certificate of safety.

This distinction is essential. PACE supports evidence discovery, integrity, selective disclosure and decision traceability. It does not replace risk assessment, functional-safety engineering, cybersecurity engineering, conformity assessment, technical documentation or the responsibility of manufacturers, integrators, operators and assessors.

Executive brief: from trials to industrial operation

The executive brief translates the detailed research into an operating proposition for Physical AI programs. It focuses on the transition from a promising demonstration to an industrial system that can be commissioned, changed, validated and maintained across a multi-company lifecycle.

The business problem

Evidence is commonly distributed across supplier portals, technical files, certificates, test reports, configuration tools, maintenance systems and email. Teams must repeatedly determine whether a record belongs to the installed component, the current software and parameter set, the intended use and the applicable lifecycle state. The cost is not only audit preparation: slow evidence discovery delays commissioning, change approval, maintenance and justified return to service.

The problem becomes harder when no single organization controls the complete evidence chain. A robot manufacturer, component supplier, AI provider, system integrator, operator, notified or accredited body and regulator may each hold only part of the relevant evidence. Bilateral document exchange does not scale well when products are modular, software changes frequently and access must be restricted.

The solution and business benefits

PACE separates two interoperable planes:

• A product-evidence data plane binds evidence to product and component identity, configuration, claims, tests, dependencies, provenance, timestamps and status. A Digital Product Passport can serve as the product-linked entry point and expose governed evidence subgraphs.
• An organizational-authority control plane establishes who may issue, request, validate or rely on evidence, for which purpose and under which mandate. Existing eIDAS trust services can contribute now; future European Business Wallet capabilities could make organizational credentials and representation rights easier to reuse if the proposed framework is adopted.

The expected business value must be tested against a document-based baseline. Suitable measures include evidence-search time, time to determine configuration applicability, time to identify affected claims after a change, re-test coordination time, commissioning lead time, justified return-to-service time, duplicate assessment work and the reuse rate of validation evidence.

PACE also enables new service models: continuous evidence monitoring, configuration-delta analysis, supplier evidence validation, machine-readable test coordination, controlled disclosure and reusable assurance packages. These services create value only when evidence quality, authority, current status and responsibility remain explicit.

Full research: a verifiable evidence architecture

The full paper develops a seven-axis reference model for modular humanoid robot arms and a typed evidence graph capable of representing open-world evidence while applying closed-world decision profiles to a specific decision. That combination reflects industrial reality: the wider evidence ecosystem can continue to grow, while commissioning or change approval must use explicit completeness rules and defined acceptance criteria.

Robot Arm Reference Model: from the physical arm to a scoped assurance decision

The Robot Arm Reference Model treats a modular arm as a configured cyber-physical system rather than a single undifferentiated product. The seven axes, exchangeable tool, drives, brakes, sensors, firmware and safety functions contribute component-level evidence. The arm assembly contributes the installed modules, interfaces and system limits. Application evidence adds the tool, payload, task, workspace, people and operating conditions that determine whether earlier evidence is applicable to the actual deployment.

Four evidence scopes must therefore remain connected:

1. Component passports identify individual modules and link their firmware, calibration, test evidence, limits and current status.
2. The arm-assembly record names the installed configuration and records interfaces, integration assumptions and system-level safety limits.
3. Application evidence describes intended use, task, tool, payload, workspace, interaction with people and the validation results for that operating context.
4. The scoped decision profile specifies which requirements and evidence must be satisfied for commissioning, change approval, continued operation or return to service.

The reference model draws a deliberate line between assurance evidence and runtime protection. The VSAEG can explain which evidence supports a decision and which change triggers revalidation. It must not sit in the time-critical sensing and protective-action loop. Immediate sensing, the safety controller and the drive or brake path remain local, independent and engineered to the applicable functional-safety requirements.

How the access-controlled VSAEG works

The access-controlled VSAEG combines a control plane for identity, authority and access with a data plane for linked evidence. The separation prevents two common category errors: reliable evidence does not prove that the requester is authorized to see or use it, and a valid mandate does not prove that the underlying safety, cybersecurity or AI claim is supported.

The end-to-end process is intentionally scoped:

1. Identifiable issuers create evidence. Component manufacturers, integrators, test providers and operators issue safety, CRA, AI and lifecycle records with explicit scope, provenance and status.
2. The product and configuration connect the records. A CRA-capable DPP and the VSAEG link evidence to the relevant component, assembly, software version, parameters, dependencies and use case rather than copying every record into a public passport.
3. Organizational authority is evaluated separately. Business Wallet or equivalent trust services establish the organization, role and mandate. Edge Wallet or issuer services bind device or issuer keys to scoped signing and verification functions.
4. Policy controls disclosure and use. The relying party requests a defined evidence view; authorization evaluates identity, mandate, purpose, role and context before protected evidence or references are released.
5. An applicable profile drives the decision. An authorized party checks the required claims, evidence, arguments, current status and completeness rules for the specific regulatory or operational decision.
6. Change closes the loop. A changed component, firmware version, AI model, parameter, tool, payload or operating context identifies affected claims and triggers the appropriate review, restriction, test or revalidation.

Together, Figures 1 and 2 form a Spherity content-leadership reference model for robot and robot-component passports, compliance evidence, functional safety, cyber resilience and robot/AI compliance. The model keeps regulatory responsibilities distinct while making their evidence relationships usable across manufacturers, integrators, operators, assessors and trust-service providers.

The architecture evaluates five forms of verifiability:

1. Cryptographic verifiability — signatures, issuer identity, integrity, status, revocation and time evidence can be checked independently.
2. Semantic verifiability — shared vocabularies, identifiers, shapes and validation rules make the meaning and structure of claims machine-readable.
3. Engineering verifiability — evidence is bound to the actual component, software, parameters, interfaces, environment and use case rather than to a generic model alone.
4. Assurance verifiability — tests, evaluations, credentials and claims expose their scope, method, assessor, result, limitations and dependencies.
5. Operational verifiability — lifecycle changes, current status, revalidation triggers, incidents and recovery actions remain visible after initial commissioning.

The graph is an evidence and decision-support layer, not the real-time safety controller. Emergency stops, protective stops, speed-and-separation monitoring, power-and-force limiting and other deterministic safety functions remain in qualified local control paths. This preserves a clear boundary between operational safety enforcement and the evidence used to justify, inspect and update the system.

Standards and regulation: a layered evidence map

PACE does not collapse distinct standards or legal regimes into a single compliance claim. It provides a way to connect scoped evidence while preserving which requirement, product role, lifecycle stage and assessor each record supports.

Europe’s opportunity—and global extensibility

Europe has an unusually strong combination of machinery and product-safety practice, industrial automation, conformity assessment, regulated product data and cross-border digital-trust infrastructure. PACE can connect those capabilities around a practical task: proving whether the current evidence supports a defined action on a defined configuration at a defined time.

European Business Wallets, if adopted and implemented, could improve reusable organizational identification, representation rights and evidence exchange. The core PACE architecture does not depend on that future legislation. Current eIDAS trust services, organizational credentials, contractual governance and sector-specific mechanisms can support pilots now.

The model is deliberately vendor-neutral and jurisdiction-extensible. International safety, cybersecurity, semantic-web, credential and attestation standards provide portable building blocks. Deployments outside Europe can substitute the relevant legal identities, conformity regimes, accreditation systems and sector rules while retaining the separation of product evidence, organizational authority, policy and operational controls.

An implementation path for manufacturers and ecosystems

1. Build the evidence foundation and prove customer value. Start with component identity, a verified evidence index and configuration matching. Measure how quickly a team can find the right evidence and determine whether it applies to the installed system.
2. Pilot controlled change and operational assurance. Connect representative configuration changes to affected claims, required tests, authorization and status. Demonstrate faster, traceable revalidation and justified return to service while keeping local safety controls authoritative.
3. Evaluate and scale across the ecosystem. Compare the graph-based process with a document baseline, validate interoperability across vendors, establish governance and responsibility, and develop reusable validation and monitoring services.

The first production scope should be narrow enough to test end to end: one modular subsystem, a defined use case, identified organizations, an explicit decision profile and measurable baseline. A larger ontology or more credentials are not substitutes for evidence that the approach improves the real commissioning and change process.

Sources, citations and evidence boundaries

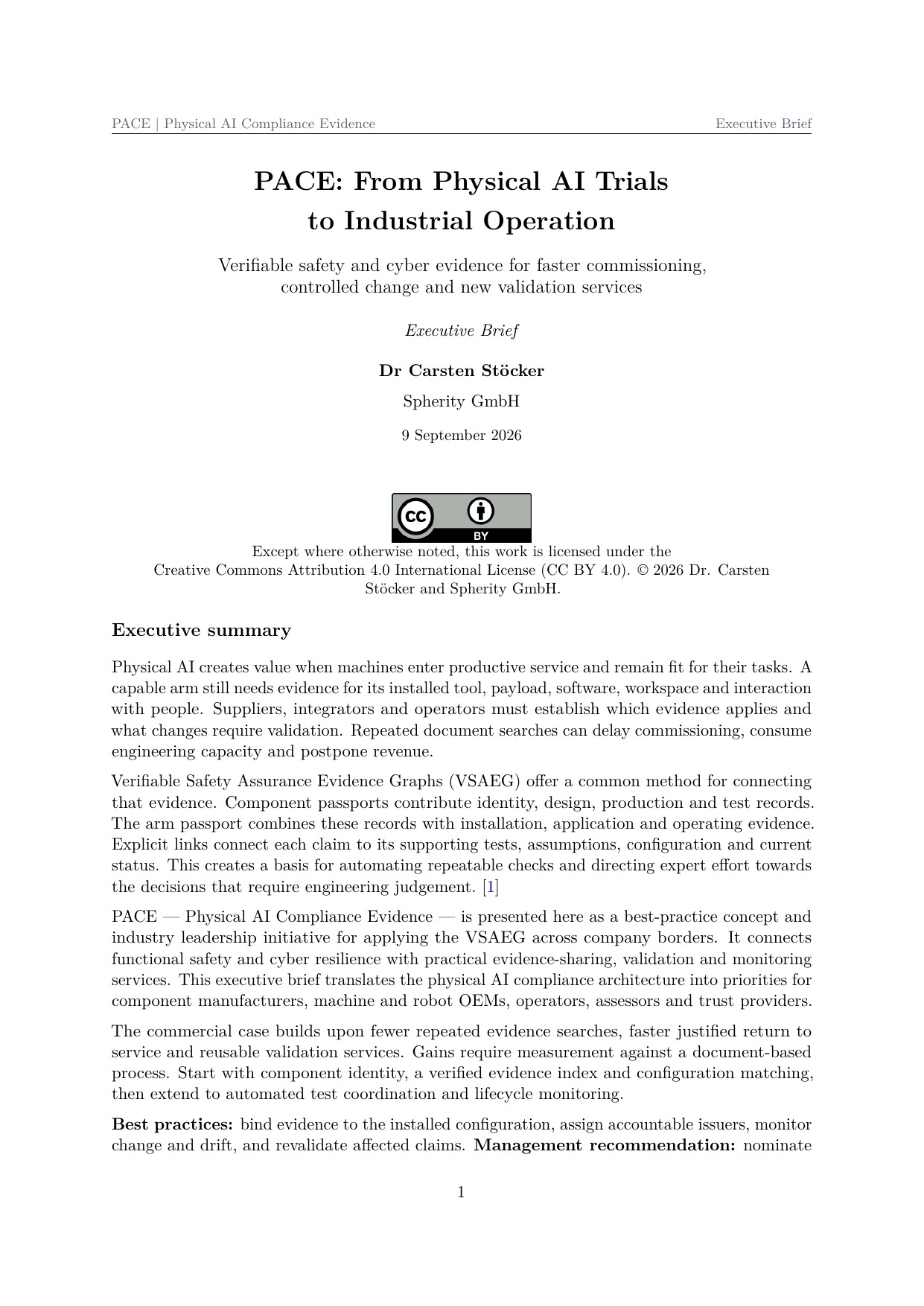

Executive brief citation. Stöcker, Carsten (2026). PACE: From Physical AI Trials to Industrial Operation—Verifiable safety and cyber evidence for faster commissioning, controlled change and new validation services. Spherity Research. Executive Brief PDF.

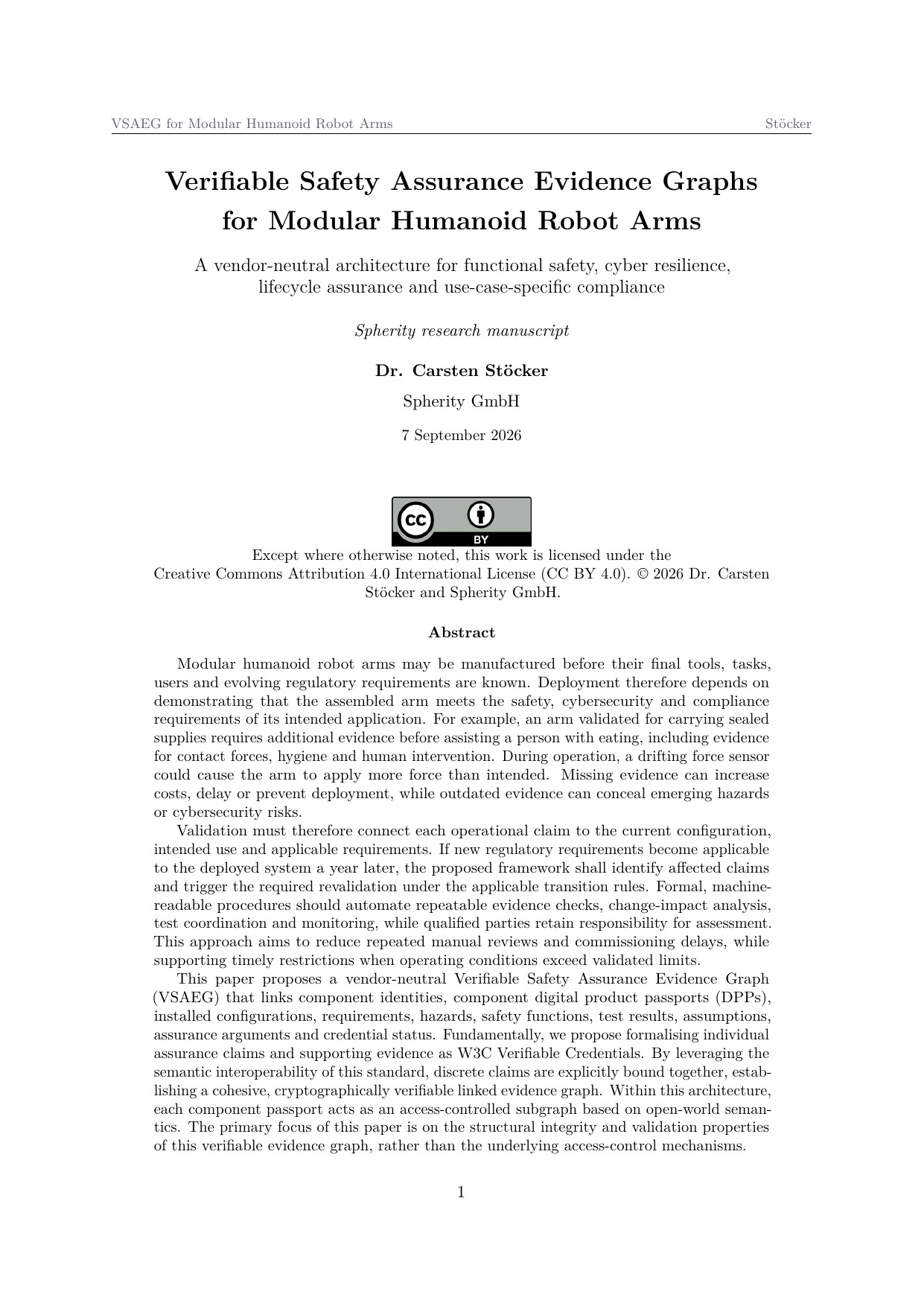

Full research citation. Stöcker, Carsten (2026). Verifiable Safety Assurance Evidence Graphs for Modular Humanoid Robot Arms—A vendor-neutral architecture for functional safety, cyber resilience, lifecycle assurance and use-case-specific compliance. Spherity Research. Full Research PDF.

The papers distinguish adopted law, published standards, proposals and architectural recommendations. The PACE label and reference architecture are Spherity research concepts, not a regulatory designation, certification scheme or claim of industry consensus. Product classification, legal obligations and conformity routes must be determined for each deployment and jurisdiction.

Google Trends was reviewed on 9 September 2026 for editorial wording. The comparisons used normalized relative-interest indices, not absolute search volumes. “Physical AI” supplied the clearest discovery signal; “robot safety”, “AI compliance”, “Cyber Resilience Act”, “Digital Product Passport” and “Maschinenverordnung” connect the specialist architecture to established audience language. The authority terms Physical AI Compliance Evidence and Verifiable Safety and Cyber Evidence Graph were retained because they precisely describe the contribution even where specialist query volume is below reporting thresholds.
